Intelligent Subsurface Data Acquisition
Better Data
Live Data
Faster Data
Efficient Data
High Quality Data
Data while Drilling
Data sent real time anywhere
Low risk retrieval
Drilling data not connected to hydraulics
Log data MWD via wireless EM Communication
Bringing innovative Oil & Gas technology to all drillers and geologists in the mining world.
MWD
Drilling Dynamics Recording
Measure accurate drilling data including:
1. Depth
2. Rate of Penetration
3. Rig Orientation & Mast Angle
4. GPS Latitude, Longitude and Elevation of Rig
5. Weight on Bit
6. Drill String Weight
7. RPM of Drill String
8. Torque at surface on drill string
9. Pump pressure and down going air temperature
10. Shock and Vibration of Drill String (500Hz)
LWD
Measure accurate downhole data including:
1. Inclination
2. Azimuth
3. Gamma Ray
Real time quality data for every drilled hole
Surface
Downhole
DDR
-
Placed on the top of the drill string
-
Monitors
-
RPM, torque, temp., inclination, axial force, vibration, and down-going air pressure
-
-
Communicates to drillNET via a cabled slip-ring interface.
DrillNET
-
Gathers, processes, displays, and transmits the data
-
GPS, mast position, depth, slips status
-

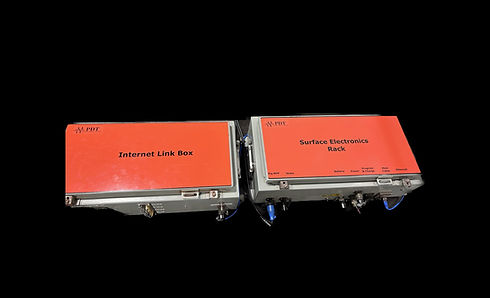

Consist of electronics rack, internet box, driller’s display tablet, encoder, slips sensor
Probe
-
Retrievable section
-
Electronics, sensors, batteries
-
Measurements
-
Same parameters as DDR
-
Downhole Gamma Ray, Inclination, Azimuth
-
Data – both live and memory
Collar
-
Placed behind the hammer
-
A mechanical carrier for the probe
-
EM telemetry
-
No DG
WHY XTHERA
An innovative approach to data acquisition
Xthera brings innovative high end Oil & Gas technology to the mining industry providing an all in one solution for measuring high quality drilling and borehole data in-situ, at the bit, in real time. We use innovative EM telemetry, a low risk method for retrieving expensive downhole sensors, easy to use equipment and a ready made way to transmit data back to the office.
We are offering this technology, that usually only major oil and gas services provide, available to all.
XTHERA in focus
Global Provider
Proven Technology
Sales & Rentals
Reliable Service
